Bosch

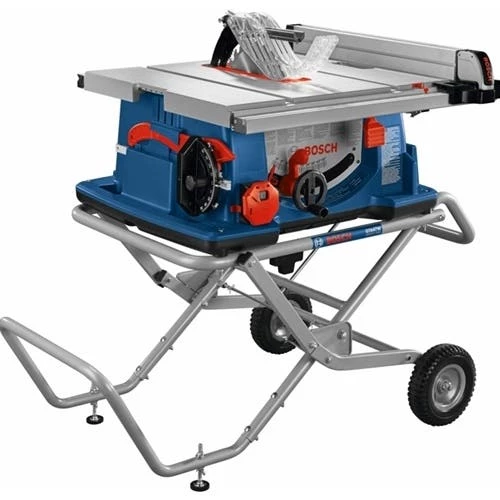

10 Worksite Table Saw with Gravity-Rise Wheeled Stand 4100-10
The powerful 15-Amp saw delivers 4.0 max HP for outstanding productivity. It also incorporates soft-start circuitry for smooth but quick ramp-up to the operating speed to manage the intensity of motor start-up and minimize the possibility of tripping a circuit breaker.
FEATURES:
- Powerful 10 In. Worksite table saw features 15-Amp saw delivers 4.0 max HP and 3;650 rpm; for the power required for ripping rip-cutting and cross-cutting in of fine- and rough-carpentry materials
- Large cast aluminum top provides increased work space and material support with a 25 In. ripping capacity to cover all typical jobsite rip-cutting widths
- Soft-start circuitry manages the intensity of motor start-up and minimizes the possibility of tripping a circuit breaker
- Constant Response circuitry helps maintain speed under load

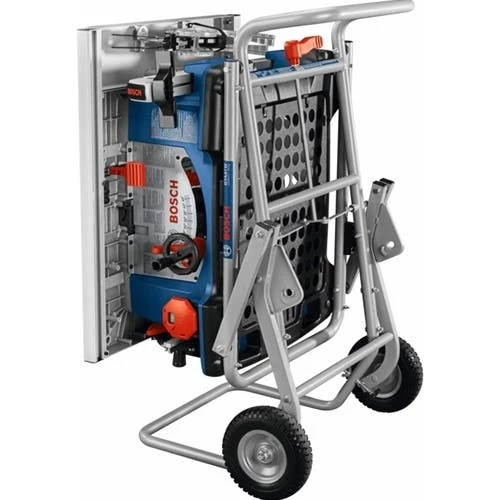

- Portability works seamlessly with the included lighter GTA47W Gravity-Rise Wheeled Stand for easy jobsite mobility; with single-action setup and take down
- SquareLock rip fence engineered for enhanced clamping and trueness
- Smart Guard System riving knife and anti-kickback pawls provide protection; while the guard assembly provides a barrier to help prevent blade contact while allowing an unobstructed view of the cut
- Onboard storage allows for access to all included components
- Arbor lock permits easy blade changes; with arbor lock and blade wrench located onboard
INCLUDES:
| Attributes | |
|---|---|
| Amperage | 15.0 |
| Arbor | 5/8″ |
| Arbor Size | 5/8″ |
| Bevel Angle Range | -2 to 47 |
| Blade Diameter | 10.0 |
| Dimensions | Table saw & stand combination in working position = 30.25″ Depth (front to back) x 47″ Width (when extension is at in-most position) x 35.5″ Height. Table-top dimensions = 21-1/2″ Depth (front to back) x 29″ Width (when extension is at in-most position) |
| Dust Blower | No |
| Height | 13.25″ |
| Length | 29.0″ |
| Max. Bevel Capacity () | 47.0 |
| Max. Depth of Cut at 45 Deg. | 2-1/2″ |
| Max. Depth of Cut at 90 Deg. | 3-1/8″ |
| No Load RPM | 3;650 |
| Voltage | 120V |
| Weight | 58.0lb |
| Weight of Bare Saw – Lb. | 58.0 |
| Weight of Saw and Standard Equipment (Without Stand) – Lb. | .0 |
| Weight of Saw; Standard Equipment and Stand – Lb. | 92.0 |
| Width | 32.0″ |
| Working Length Table Top dimensions | 29″ x 21-1/2″ |
| Works With | Vacuum Hoses Common 2-1/2″ Vacuum Hoses | Vacuum Hose Adapter for 35 mm Vacuum Cleaner Hoses VAC004 | Dust Bag TS1004 | Zero-Clearance Insert TS1005 | Dado Insert TS1007 | Molding Insert TS1009 | Outfeed Support TS1016 | Left-Side Support TS1008 |
| Includes | (1) GTA47W Gravity-Rise Wheeled Table Saw Stand; (1) Smart Guard System – Barrier-Guard Device and Anti-Kickback Pawls; (1) 10 In. Carbide-Tipped Blade; (1) SquareLock Rip Fence; (1) Miter Gauge; (1) Push Stick; (1) Throat Plate Insert; (1) Multi-Function Blade Wrench; (1) Adjustment Wrench |
“
