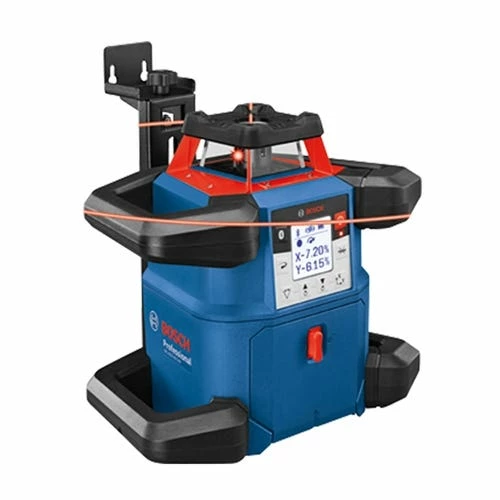

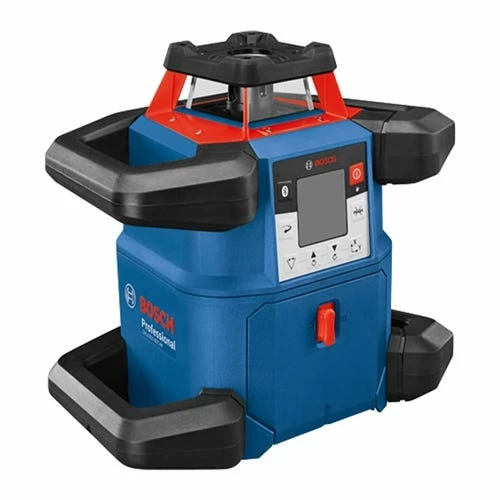

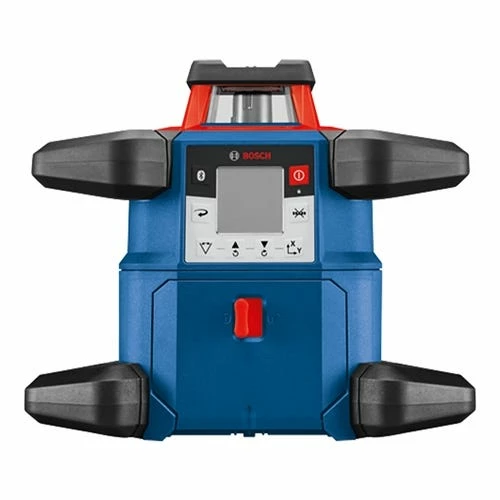

Bosch Power Tools Bosch 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit GRL4000-80CHVK

Bosch

18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit GRL4000-80CHVK

The 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser Kit with uCAL User-calibration delivers a comprehensive solution for precise outdoor and indoor leveling. It has a Dual Dial-In Slope feature that allows slope angle adjustment on both the X and Y axes; for grading applications.

FEATURES:

• Fully featured rotary laser – has Dual Dial-In Slope; CORE18V power; Bluetooth connectivity; uCAL user-calibration and more.
• Dual Dial-In Slope – allows slope angle adjustment on both the X and Y axes.
• Dual Power Source – for extended runtime and option of a 4.0 Ah CORE18V battery or a battery adapter with four (D) cell batteries.
• Durable design – engineered with a cage rubber overmold and an innovative handle design to stand up to the toughest jobsites; built to IP68 dust- and water-protection standards.
• Bluetooth connectivity – connects to a mobile device; linking to the free Bosch Leveling Remote App; to control sleep mode; Dual Dial-In Slope; and more.
• uCAL – user-calibration guiding the user step-by-step to confirm tool status or calibrate the rotary laser to ensure accuracy on the jobsite.
• Long working range – range of up to 4;000 Ft. with laser receiver; the laser accuracy of up to ±1/16 In. at 100 Ft. in horizontal mode and ±1/8 In. at 100 Ft. in vertical mode.
• Vertical-beam functionality – provides a vertical beam at 90° point for layout; squaring and plumb applications.
• Electronic self-leveling – allows for easy setup and use on the job.
• Disturbance monitor – indicates if tool position changes; ensuring consistent leveling accuracy.
• Variable-speed and scan-angle selection – allows for maximum visibility at different lighting conditions.

SPECIFICATIONS:

Accuracy	± 1/16 In. @ 100 Ft. Horizontal Mode ± 1/8 In. @ 100 Ft. Vertical Mode
Battery	Lithium-Ion Battery
Battery Voltage (V)	18
Height	11.0
Length	12.8″
Width	7.4″
IP Rating	IP 68
Laser Diode	635 nm;
Leveling Type	Self-Leveling; Up to 5°
Material	Plastic Composite
Mount Threading	5/8-11
Operating Temperature	14° F / -10° C ~1 22° F / 50° C
Range	Up to 4;000-ft.

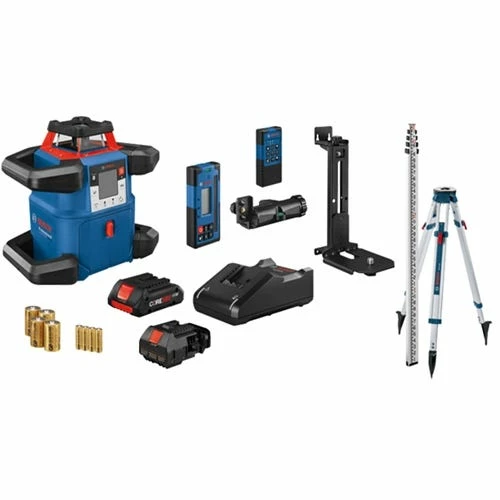

INCLUDES:

• (1) GRL4000-80CHV 18V REVOLVE4000 Connected Self-Leveling Horizontal/Vertical Rotary Laser

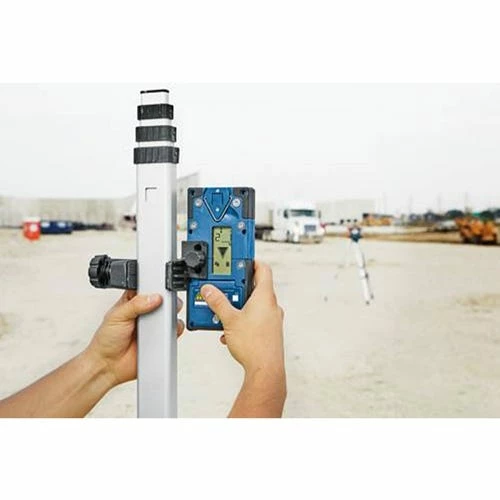

• (1) LR40 Laser Receiver with Bracket
• (1) GBA18V40 18V CORE18V Lithium-Ion 4.0 Ah Compact Battery
• (1) 18V Battery Charger
• (1) BA1 Alkaline Battery Adapter
• (1) BT170 Heavy-Duty Aluminum Tripod
• (1) GR13 13 Ft. Grade Rod
• (1) WM6 Wall Mount
• (1) RC5 Remote Control
• (1) Carrying Case
• (4) D Batteries
• (4) AA Batteries

“
