Greenlee 1/2″ To 2″ Mechanical Bender For EMT/IMC Rigid And Aluminum Conduit 1818

Greenlee

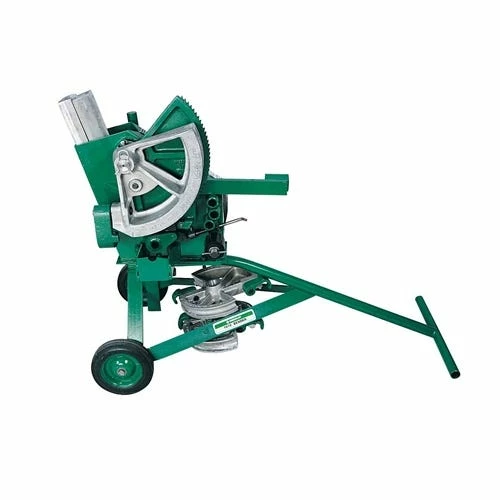

Mechanical Bender for EMT; IMC; Rigid and Aluminum Conduit 1818

FEATURES:

• Mechanical Bender for 3/4 through 2″ EMT Conduit; 1/2″ through 1-1/4″ IMC Conduit and 1/2″ through 1-1/2″ Rigid and Aluminum Conduit
• Bends a wide variety of types and sizes of conduit
• Durable ratchet mechanism for easy bending
• Bypass the ratchet for fast; direct bending on smaller sizes
• Bending degree indicator and charts for fast; easy; accurate bending
• All shoe and bending accessories can be mounted to the frame unit and secured with a chain and lock
• Heavy-duty undercarriage with wheels
• Does not include handle
• Centerline Bend Radius : 5-3/32 IN (129.400 MM) – 9-3/16 IN (233.400 MM) (EMT) For 3/4 IN – 2.000 IN Shoe Size; 2-21/32 IN (67.500 MM) – 7-3/8 IN (187.300 MM) (IMC) For 1/2 IN – 1-1/4 IN Shoe Size; 2-21/32 IN (67.500 MM) – 9.000 IN (228.600 MM) (Rigid) For 1/2 IN – 1-1/2 IN Shoe

Replacement Part : 1818G1 Frame And Undercarriage Unit Only; 19988 Wheel; Non-flat

INCLUDES:

• 36247 – Undercarriage Unit
• 36697 – Roller Pin Unit
• 18681 – Cushioned Roller Unit
• 18827 – 1/2; 3/4 & 1″ Rigid/IMC Shoe Unit
• 18828 – 1-1/4″ Rigid/IMC; 1-1/2″ Rigid Shoe Unit
• 18830 – 3/4 & 1″ EMT Shoe Unit
• 18831 – 1-1/4 & 1-1/2″ EMT Shoe Unit
• 18642 – 1-1/4 & 1-1/2″ EMT Follow Bar
• 18832 – 2″ EMT Shoe Unit
• 186 – 2″ EMT Follow Bar
• 36296 – Roller Follow Bar Guide
• 18772 – Retainer Clip
• 51509 – Wheel (Quantity 2)

SPECIFICATIONS:

Conduit Type	EMT; IMC; Rigid And Aluminum Rigid
Construction	Steel And Aluminum
Replacement Part	1818G1 Frame And Undercarriage Unit Only; 19988 Wheel; Non-flat
Weight	250.000 LB (114.000 KG)
Capacity	EMT:3/4″ – 2″ Rigid: 1/2″ – 1-1/2″ IMC: 1/2″ – 1-1/4″ Aluminum Rigid: 1/2″ – 1-1/2″

“
