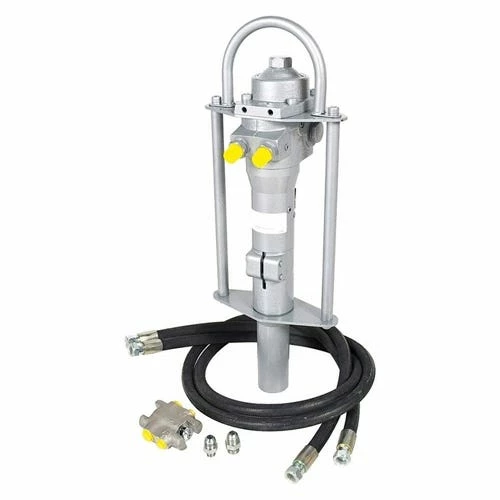

Greenlee 1″ Ground Rod Driver HRD-1

Greenlee

Ground Rod Driver 1 HRD-1

FEATURES:

• A deep rod opening and smooth operation ensures that the driver will not jump off of rods.
• Light weight allows easy mounting on top of rods.
• Can be used with Open and Closed-Center hydraulic systems.
• Dual guide rods provide excellent control for driving rods straight; and the remote on/off valve makes it easy to control the depth of the rod.

SPECIFICATIONS:

Accessory	54923 UPC 54923 HTMA Male Coupler; 54924 UPC 54924 HTMA Female Coupler
Blow Energy	63.000 FT-LB
Blow Frequency	1740/MINT At 8 GPM (30 LPM)
Hose Length	70″
Hydraulic Flow Range	5 – 8 GPM
Hydraulic System	Open And Closed-Center
Jaw Opening	1″
Length	25-1/2 IN
Maximum Input Pressure	2000 PSI
Pressure Port	9/16-18 SAE O-Ring On/Off Valve
Replacement Part	02872 UPC 02872 70 IN Hose Assembly; 111952 UPC 40290 Remote Valve
Return Port	3/4 – 16 SAE O-Ring On/Off Valve
Type	HRD Ground Rod
Weight	45 lbs

“
