Greenlee 10 Flex Clamp Meter CMF-110

Greenlee

10 Flex Clamp Meter CMF-110

The 10″ Flex Clamp meter CMF-110 accurately measures TRUE RMS AC current; AC voltage; resistance; frequency and inrush current.

FEATURES:

• Range Selection: Convenient auto or manual range selection up to 3000A AC current.
• LCD Display: Clearly displays measurement data an function models.
• Data Hold Function: Read measurement after removing from the conductor or enclosure.
• Low Battery Indication: Icon on LCD display indicates when the battery is low.
• Automatic Power Off: Meter turns off if not used for 10 minutes.
• Flexible: Rogowski coil easily maneuvers around cables that are hard to reach or deep within cabinets.

SPECIFICATIONS:

Standard	Compliance: CE; CETLUS
Voltage Rating	6V/60V/600V
Amperage Rating	30A/300A/3000A
Frequency Rating	20 – 30kHz
Accuracy Voltage	±1.2% + 300mV
Display	LCD
Operating Temperature	0 to 50°C
Coil Diameter	10 in. (25.4 cm)
Resistance	60.0MO
Inrush Current	80ms; minimum: 3.0A
Safety Category Rating	CAT IV 600V

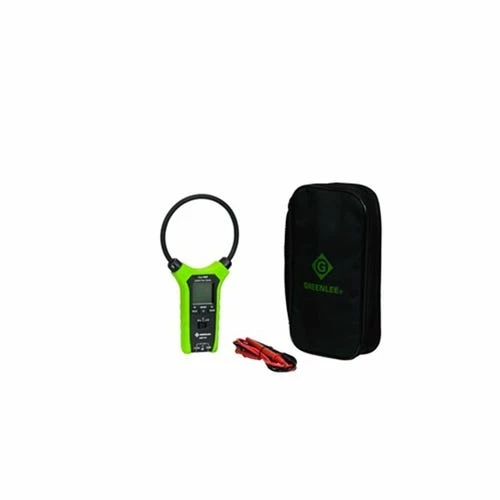

INCLUDES:

• Leads
• Carrying Case
• 3 AAA Batteries

“
