Greenlee

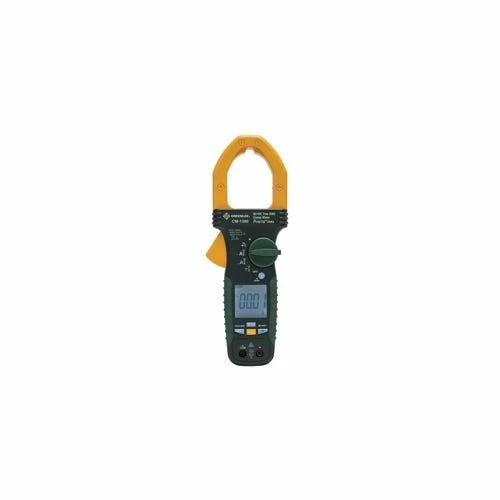

1000 AMP AC + DC TRUE RMS CLAMP METER CM-1560
FEATURES:
- CM-1560 Clamp meter with Certificate of Calibration
- Measures AC+DC current
- AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage; resistance; capacitance and frequency
- Tests continuity and diodes
- Flashlight inside clamp jaw for easier work in dark locations
- Backlight & relative mode for added versatility
- Peak-RMS measures motor in rush current
- AmpTip increases accuracy on small wires and low current
- Two voltage detection modes – non-contact or using a single test lead
- Data hold
- Recording of Maximum; Minimum; and Average readings
- Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds
SPECIFICATIONS:
| Amperage Measurement : | 60; 600; 1000 Amps AC+DC |
|---|---|
| Display : | LCD; 6000 Count |
| Frequency Rating : Voltage: | 50/60 Hz. Current: 40 to 400 Hz |
| Includes : | (2) 1.5V AA batteries; test leads; carrying case |
| Jaw Opening : | 2.0 (51 mm) |
| Measurement Category : | CAT III 1000V; CAT IV 600V |
| Replacement Part : | TSG-3 test leads; TC-30 carrying case |
| Resistance Measurement : | 600; 6k; 60k Ohms |
| Standard : | CAT IV; C/US UL Listed; CE |
| True Power : | AC+DC True RMS |
| Voltage Measurement : | 600; 1000 Volts AC/DC |
“
