Greenlee 200lb Motorized Cable Tray Feeder CTF-200

Greenlee

200lb Motorized Cable Tray Feeder CTF-200

FEATURES:

• Feeds cable aiding up to 200 lbs (90.7 kg) of force
• Force limiter preset to automatically stall on cable to prevent damage to the wire’s insulation
• Retained locking pins allow for quick adjustment of legs and feeder along mounting system while utilizing no loose pieces
• Adjustable legs to fit onto tray width sizes of 18″ (457.2 mm) to 36″ (914.4 mm)

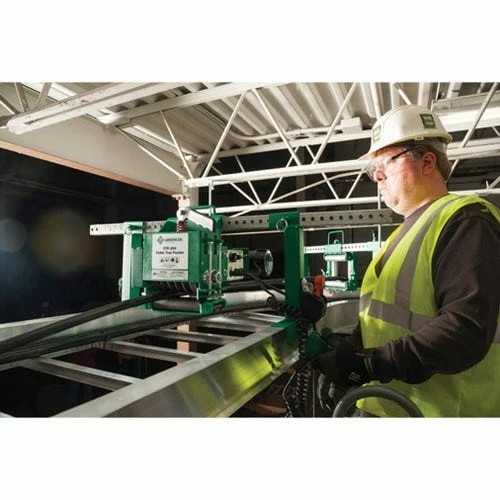

• Over-Tray mounting systems allows cable to be placed in tray without taking space up
• Safely control the CTF-200 up to 8′ (2.4 m) away with a pendant
• Specifically designed drive roller to safely and evenly grab cable
• Quick release system utilizes 360° swivel and no loose pieces to easily remove cable

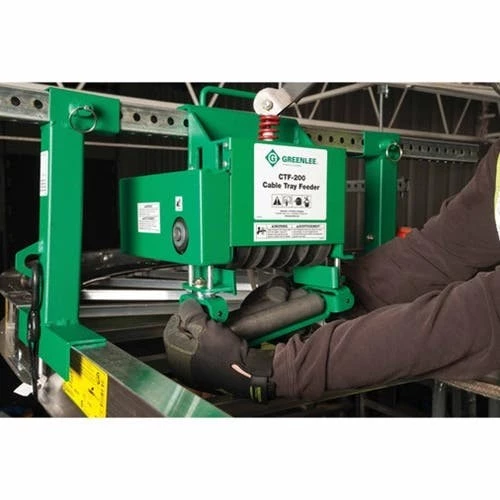

• Cam lever system offers a quick clamping mechanism once pulling grip passes through
• Designed and assembled in USA

SPECIFICATIONS:

Application	Used to assist feeding cables along non basket-style cable trays. Designed to aid loads right before 90° bends; vertical rises and drops; and on straight runs
Cable Capacity	Up to 2 (50.8 mm) in outer diameter
Height	14-1/4″ (362 mm)
Length	42-3/4″ (1085.9 mm)
Overall Height	14-1/4″ (362 mm)
Overall Length	42-3/4″ (1085.9 mm)
Pulling Force	200 lb (90 kg)
Roller Opening Size	0″- 2″ (0 mm – 50.8 mm)
Weight: Feeder	57 lbs (25.9 kg); Mounting System: 12 lbs (5.4 kg)
Width	4-1/4″ (108 mm)

“
