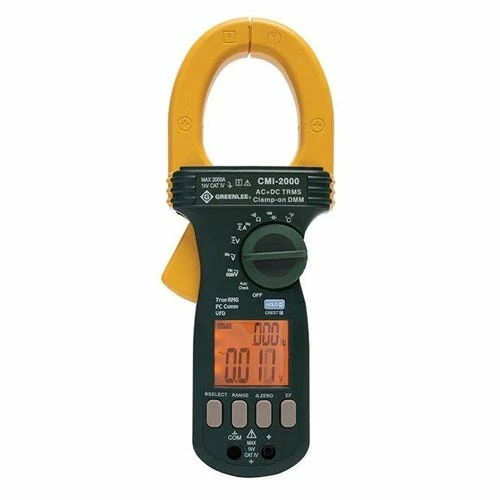

Greenlee 2500A AC/DC Industrial Clamp Meter CMI-2000

Features

• Measures AC+DC current
• AC and AC+DC voltage measurements with selectable digital low pass filter for accurate voltage and frequency readings on variable frequency drives
• Also measures DC voltage; resistance; capacitance; temperature and frequency
• ests continuity and diodes
• Low impedance AutoCheck mode automatically selects AC or DC volts; resistance or continuity. Low impedance masks inghostin voltage pickup
• Backlight & relative mode for added versatility
• Two voltage detection modes – non-contact or using a single test lead
• Computer interface capability using optional CMSC-1U cable and software
• Data hold
• Crest (peak hold) feature captures current or voltage peaks as short as 5 milliseconds
• Lifetime warranty
• Amperage Measurement : 200; 2000 Amps AC+DC
• Display : LCD with dual measurements. 6000 counts for current; voltage; resistance; temperature and capacitance. 2000 counts for frequency
• Frequency Rating : 40 to 400 Hz
• Includes : (2) 1.5V AA batteries; test leads; carrying case
• Jaw Opening : 2.1 (55 mm)
• Measurement Category : CAT IV 1000V
• Replacement Part : TSG-3 Test Leads; TC-30 Carrying Case
• Resistance Measurement : 600; 6k; 60k; 600k; 6M; 40M Ohms
• Standard : CAT IV; C/US UL Listed; CE
• True Power : AC+DC True RMS
• Voltage Measurement : 6; 60; 600; 1000 Volts AC+DC

“
