Greenlee

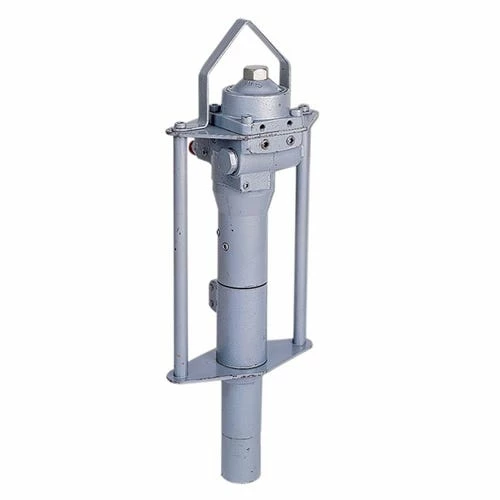

Ground Rod Driver 5/8 HRD-58
FEATURES:
- A deep rod opening and smooth operation ensures that the driver will not jump off of rods.
- Light weight allows easy mounting on top of rods.
- Can be used with Open and Closed-Center hydraulic systems.
- Dual guide rods provide excellent control for driving rods straight; and the remote on/off valve makes it easy to control the depth of the rod.
SPECIFICATIONS:
| Accessory | 54923 HTMA Male Coupler; 54924 HTMA Female Coupler |
|---|---|
| Blow Energy | 63.000 FT-LB |
| Blow Frequency | 1740/MINT At 8 GPM (30 LPM) |
| Hose Length | 70″ |
| Hydraulic Flow Range | 5 – 8 GPM |
| Hydraulic System | Open And Closed-Center |
| Jaw Opening | 5/8″ |
| Length | 25-1/2 IN |
| Maximum Input Pressure | 2000 PSI |
| Pressure Port | 9/16-18 SAE O-Ring On/Off Valve |
| Replacement Part | 02872 UPC 02872 70 IN Hose Assembly; 111952 UPC 40290 Remote Valve |
| Return Port | 3/4 – 16 SAE O-Ring On/Off Valve |
| Type | HRD Ground Rod |
| Weight | 45 lbs |
“
