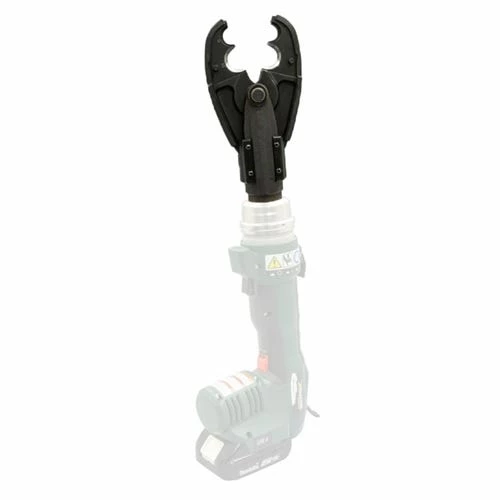

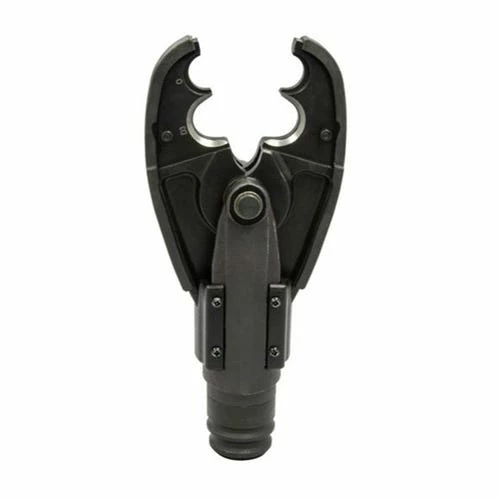

Greenlee 6-Ton UC-60-BG Service Drop Crimping Head 06040G

Greenlee

6-Ton UC-60-BG Service Drop Crimping Head 06040G

FOR USE WITH:

• Copper Taps: #10 Solid – 2/0 Stranded
• AL and ACSR Taps: #14 Solid – 4/0 ACSR
• Stirrups: #6 – 4/0 ACSR
• Tension Splices: #10 Stranded – 4/0 ACSR
• Lugs & Splices: #8-350 MCM AL; 500 MCM CU
• Services Entrances: #10 Stranded – 4/0 ACSR

SPECIFICATIONS:

Type	Die style crimper
Sub-Brand	Gator
Application	6 Ton Crimping
Overall Length	10
Crimping Force	6 Ton (53kN)
Crimping Capacity	#8-500 MCM Cu; #8-350 MCM AI; Aluminium H-taps up to 4/0-4/0
Connector Type	#8-500 MCM Cu; #8-350 MCM AI; Aluminium H-taps up to 4/0-4/0

“
