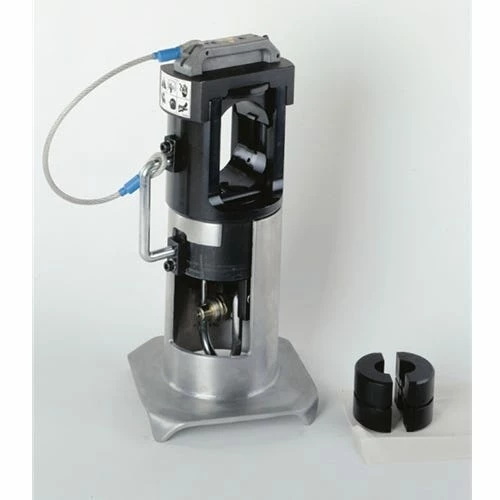

Greenlee 60 Ton Double Acting Crimping Tool DK6040

Original price was: $381.00.Current price is: $95.99.

Greenlee
60 Ton Double Acting Crimping Tool DK6040
Ideal tool for use in substation and transmission construction
Accepts Burndy L dies and Alcoa 6000 Series crimping dies
After completing a connection; the top of the head easily swivels 90 and can be lifted from the tool to remove the connector
Removing the tool from the stand exposes a lifting eye for when the tool must be used above ground level
RK6040 requires 10;000 psi (700 bar) single-acting hydraulic power source
DK6040 requires 10;000 psi (700 bar) double-acting hydraulic power source
Equipped with 3/8 IN screw type hydraulic couplers
Includes steel carrying case with storage space for dies
Application : For Use In Substation And Transmission Construction
Capacity : 300 -2000 KCMIL Copper Stranded Code Cable; 250 – 2000 KCMIL Aluminum Stranded Code Cable; 1/0 AWG – 1000 KCMIL Copper Tension Sleeves; 1/0 AWG – 2300 KCMIL Aluminum Tension Sleeves; 1/0 AWG – 2156 (Bluebird) KCMIL ACSR Tension Sleeves; 4/0 AWG – 2500 KCM
Crimping Force : 120000.000 LB (530.000 KN) At10000 PSI
Height : 17.000 IN (432.000 MM)
Includes : Steel Carrying Case With Storage Space For Dies
Oil Volume Required : 0.75 PT (312 CC)
Operating Pressure : 10000 PSI (700 BAR)
Type : Double Acting
Weight : 52.000 LB (23.500 KG)
Width : 6.000 IN (153.000 MM)
