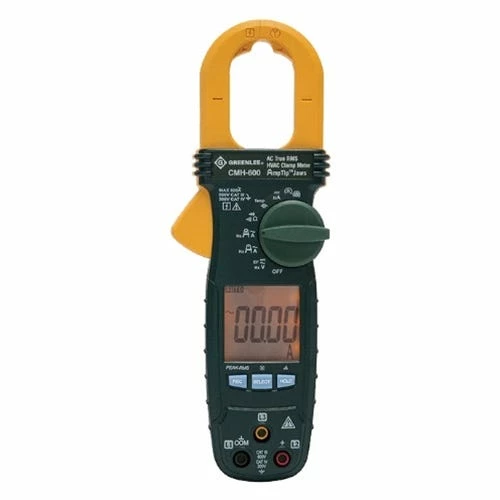

Greenlee 600 Amp HVAC Ac True Rms Clamp Meter CMH-600

Greenlee

600 Amp HVAC Ac True Rms Clamp Meter CMH-600

Measures AC current and DC micro-amps

FEATURES:

• AC voltage measurement with digital low pass filter for accurate readings on variable frequency drives
• Also measures DC voltage; resistance; capacitance; temperature and frequency
• Tests continuity and diodes
• Phase Sequence & Motor Rotation tests
• Peak-RMS measures motor in rush current
• Backlight & relative mode for added versatility
• AmpTip™ increases accuracy on small wires and low current
• Two voltage detection modes – non-contact or using a single test lead
• Data hold
• Recording of Maximum; Minimum; and Average readings
• Lifetime warranty

SPECIFICATIONS:

Amperage Measurement	60; 600 Amps AC
Display	LCD; 6000 Count
Frequency Rating	Voltage and AmpTip™ current: 50/60 Hz. High current: 50 to400 Hz
Includes	(2) 1.5V AAA batteries; test leads and clips; carrying case
Jaw Opening	1.18” (30 mm)
Measurement Category	CAT III 600V; CAT IV 300V
Replacement Part	02714 test leads and clips; TC-10 carrying case
Resistance Measurement	600; 6k; 60k Ohms
Standard	CAT III; C/US UL Listed; CE
True Power	AC True RMS
Voltage Measurement	600 Volts AC/DC
