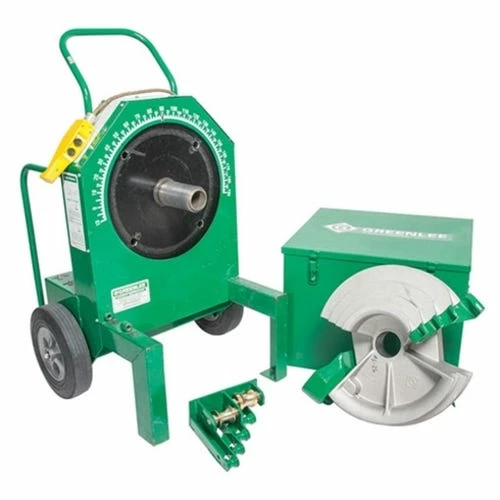

Greenlee Classic Conduit Bender With 1/2-2″ Rigid Shoe 555RSC

Greenlee

Electric Classic Bender with 28008 1/2 – 2″ Rigid Shoe Group 555RSC

INCLUDES:

• (1) 555C Series Bender
• (1) 28008 1/2″ – 2″ Rigid Shoe Group

FEATURES:

• The 555C Classic Series features simple relay controls for easy field repairs; and compact handle design to prevent interference with conduit when bending
• Bend 1/2″ – 2″ Rigid; IMC; EMT & PVC Coated Rigid
• Shoe groups available for different combination
• The optional PVC-coated rigid conduit shoe group can be used on all 555 series benders
• Less lifting reduces operator fatigue

SPECIFICATIONS:

Capacity	1/2″ – 2″ Rigid (1/2″ – 2″ IMC with IMC Roller Support)
Power	120 VAC; 20 amp GFCI-protected
Weight	320lbs
Height	44″ (1118 mm)
Width	28.5″ (724 mm)
Depth	28-1/2″ (724 mm)
Operating Temperature	-5°F to 120°F (-20°C to 49°C)
Relative Humidity	0-98%
Centerline Bend Radius	1/2” – 4-1/4”; 3/4” – 5-7/16”; 1” – 6-15/16”; 1-1/4” – 8-3/4”; 1-1/2” – 8-1/4”; 2” – 9”
Conduit Type	Rigid Conduit

“
