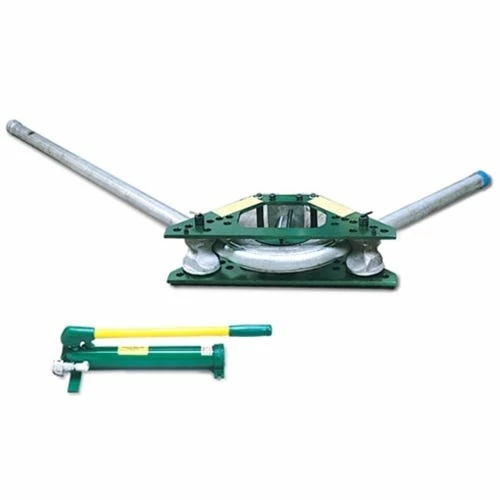

Greenlee Hydraulic Bender 1-1/4″ – 4″ 755 Hand Pump 777HC755

Greenlee

1-1/4 to 4″ Hydraulic Conduit Bender with 755 Hand Pump 777HC755

FEATURES:

• Strong; portable pin-assembled aluminum components
• Easy-to-use ram travel scale and bending charts
• Conduit supports index to suit all sizes
• With 755 Hand Hydraulic Pump

SPECIFICATIONS:

Accessory	1802 Bending Table (Optional); 21357 Conduit Support Pin for use with 1802 Bending Table – (2) Required
Application	For 1-1/4 IN – 2.000 IN One-Shot 90 DEG and 2-1/2 IN – 4.000 IN Segment Bending
Capacity	1-1/4 – 4.000 IN Rigid Conduit
Centerline Bend Radius	7-1/4 – 9-1/2 IN (184.100 – 241.300 MM) Rigid For 1-1/4 – 2.000 IN Shoe Size; 11-7/16 – 18-1/4 IN (290.500 – 463.600 MM) For 2-1/2 – 4.000 IN Shoe Size
Material	Aluminum Components
Type	Rigid
Weight	173.000 LB (79.000 KG)

“
