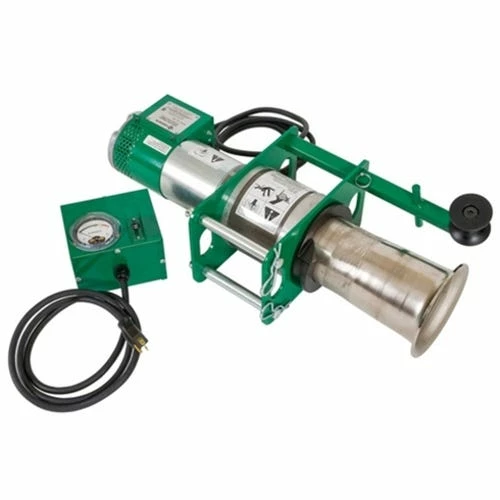

Greenlee Power Unit With Force Gauge For Ultra Tugger 8 Cable Puller 08000

Greenlee

Power Unit with Force Gauge for Ultra Tugger 8 Cable Puller 08000

FEATURES:

• 8;000 lbs. (35.8 kN) pulling force.
• Pulling speed ranges from 9 fpm at 2;000 lbs. to 6 fpm at 8;00 lbs.
• Mobile Versi-Boom system provides fast setup with no anchors to set or chains to mount.
• Boom uses 3 rigid steel conduit for easy length adjustment to pull 10 to 20 feet (3 to 6 m) of cable out of the box fast and easy.
• Direct gear drive.
• Easy to move around jobsite with mobile carriage (sold separately).

SPECIFICATIONS:

Length	11.5″ (29 cm)
Width	26″ (66 cm)
Height	8.5″ (21.6 cm)
Drive Motor	1-1/2 hp (1.12 kw)
Power Requirement	120 VAC 20 A
Continuous Pull Force	6;500 lbs. (28.9 kN)
Maximum Pull Force	8;000 lbs. (35.8 kN)
Pulling Speed	No Load – 9 fpm; 2;000 lbs. – 8 fpm; 4;000 lbs. – 7.5 fpm; 6;000 lbs. – 7 fpm; 8;000 lbs. – 6 fpm
Required Rope	7/8″ diameter Double-Braided Polyester Composite rated at 32;000 lbs. (142 kN) minimum breaking strength

INCLUDES:

• (1) Ultra Tugger 8 Power Unit
• (1) Standard Force Gauge

“
