Greenlee

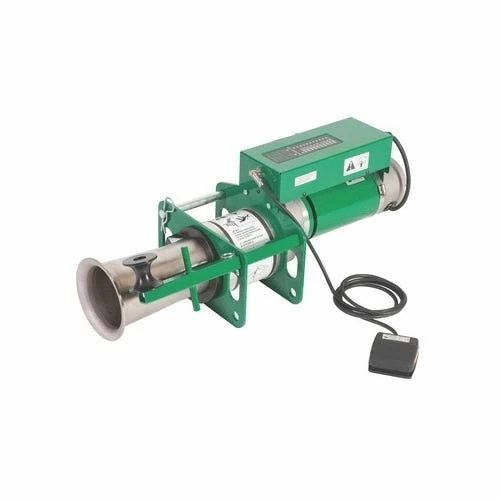

UT10-22 Cable Puller Assembly UT10-22
FEATURES:
- 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range.
- Strong; rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB.
- Easy control features for increased productivity.
- On-board force gauge provides visual communication of pulling force and speed changes.
- Quick speed change from high-speed to low-speed by simply double tapping foot pedal.
- Removable foot pedal for convenience.
- Capacity: 0 – 6500 LB (0 – 28.9 KN) Continuous Operation; 6500 – 8000 LB (28.9 – 35.6 KN) 15 MINT ON/15 MINT OFF; 8000 – 10000 LB (35.6 – 44.5 KN) Momentary.
- Voltage : 220 V.
SPEEDS (APPROX.):
| Low Speed | 6;000 lbs.: 7 FPM 8;000 lbs.: 6 FPM |
|---|---|
| High Speed | no load: 48 FPM 2;000 lbs.: 14 FPM 4;000 lbs.: 12 FPM |
