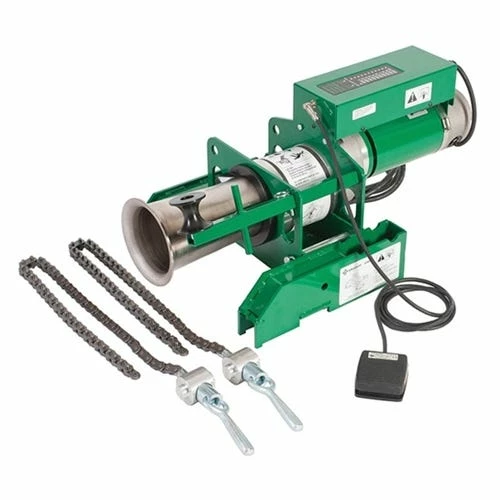

Greenlee UT10-2S Cable Puller Package W/ Chain Mount – 10;000lb. 6901

Greenlee

UT10-22 (220V) Cable Puller Package w/ Floor Mount – 10;000lb. 6900-22

FEATURES:

• 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range.
• Strong; rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB.
• Easy control features for increased productivity.
• On-board force gauge provides visual communication of pulling force and speed changes.
• Quick speed change from high-speed to low-speed by simply double tapping foot pedal.
• Removable foot pedal for convenience.

SPECIFICATIONS:

Application	For Cable Pulls Requiring High As Well As Low Pulling Loads
Capacity	0 – 6500 LB (0 – 28.9 KN) Continuous Operation; 6500 – 8000 LB (28.9 – 35.6 KN) 15 MINT ON/15 MINT OFF; 8000 – 10000 LB (35.6 – 44.5 KN) Momentary
High Speed	16 FT/MINT (4.88 MR/MINT) At No Load 14 FT/MINT (4.27 MR/MINT) At 2000 LB (8900 N) 12 FT/MINT (3.66 MR/MINT) At 4000 LB (17.8 KN)
Low Speed	7 FT/MINT (2.13 MR/MINT) At 6000 LB (26.7 KN) 6 FT/MINT (1.83 MR/MINT) At 8000 LB (35.6 KN)
Voltage	220V
