Southwire Tools & Equipment Southwire 50A 1970 Series Temporary Power Distribution X-Treme Box W/ Straight Blade Receptacles & Roll Cage 8706UGCX

Southwire

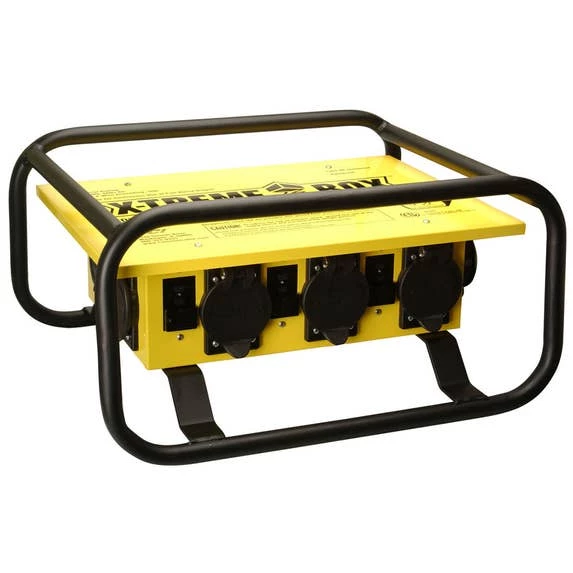

50A 1970 Series Temporary Power Distribution X-Treme Box w/ Straight Blade Receptacles & Roll Cage 8706UGCX

Southwireﾒs X-TREME BOX unit provides work-site power distribution thatﾒs economical, rugged, and most of all, safe! The
new roll cage designs are constructed with a tubular steel frame for added durability and are vertically stackable for easy
transports.

FEATURES:

• HEAVY GAUGE carbon-steel case with corrosion resistant finish and a steel-reinforced sled base offer excellent durability.
• Dedicated GFCI module and circuit breaker for each 20 amp receptacle.
• Flagged circuit breakers for easier troubleshooting.
• Premium breakers and all-copper backplane for superior performance.
• OHA/NEC/CEC Compliant, cULus Listed to NEMA 3R.
• 7 OUTLETS overload protected; Open neutral and over-voltage protection on all 20 A outlets.
• 7 OUTLETS: 1 50-Amp, 125/250 Volt California Standard Twist Lock Flanged Inlet with Integral Cover, 6 L5-20R 20 Amp straight blade Outlets.
• Advanced GFCI technology with open neutral and over-voltage protection.
• WEATHER-PROOF receptacles and ciruit breaker cover.

SPECIFICATIONS:

Maximum Amps	50A
Power Specs	125/250V 50-Amp 3P4W
Input Connector	50-Amp 125/250V 3P4W CA-Style 6375
Feed-Thru Connector	50-Amp 125/250V 3P4W CA-Style 6369
Outputs	6 x NEMA 125V 20-Amp 5-20 single receptacles with dedicated GFCI Protection and 1 x 250V 30-Amp L6-30
Style	Roll-Cage
Height	24.25″
Width	20.5″
Depth	12.5″
