Southwire Tools & Equipment Southwire 50A 1970 Series Temporary Power Distribution X-Treme Box W/ Twist Lock Receptacles & Roll Cage 8706TLCX

Southwire

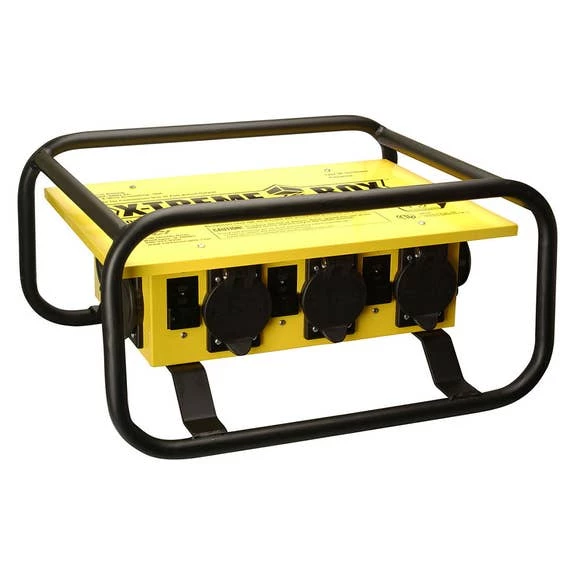

50A 1970 Series Temporary Power Distribution X-Treme Box w/ Twist Lock Receptacles & Roll Cage 8706TLCX

Southwireﾒs X-TREME BOX unit provides work-site power distribution thatﾒs economical, rugged, and most of all, safe! The
new roll cage designs are constructed with a tubular steel frame for added durability and are vertically stackable for easy
transports.

FEATURES:

• Dedicated GFCI module and circuit breaker for each 20 amp receptacle.
• Flagged circuit breakers for easier troubleshooting.
• Premium breakers and all-copper backplane for superior performance.
• OHA/NEC/CEC Compliant, cULus Listed to NEMA 3R.
• Spring loaded flip covers on all inlets and outlets.
• CA-style connections reduce electrical hookup and labor costs.
• Advanced GFCI technology with open neutral and over-voltage protection.
• Several boxes can be run in series before a significant drop in voltage occurs.
• Locking or straight blade receptacle models available.

SPECIFICATIONS:

Maximum Amps	50A
Power Specs	125/250V 50-Amp 3P4W
Input Connector	50-Amp 125/250V 3P4W CA-Style 6375
Feed-Thru Connector	50-Amp 125/250V 3P4W CA-Style 6369
Outputs	6 x NEMA 125V 20-Amp L5-20 single receptacles with dedicated GFCI Protection and 1 x 250V 30-Amp L6-30
Style	Roll-Cage
Height	24.25″
Width	20.5″
Depth	12.5″
