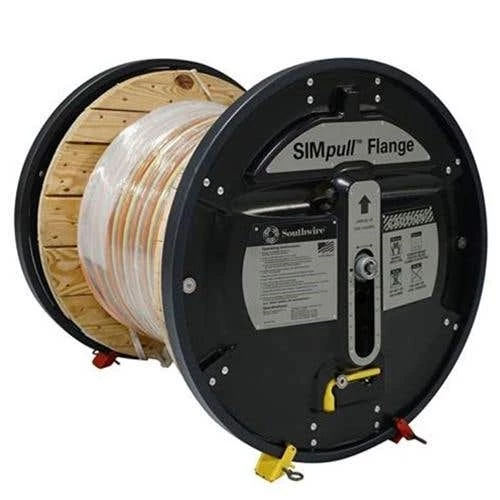

Southwire Tools & Equipment Southwire SimPull Flange 22″ To 34″ Cable Reels SF-01

Southwire

Southwire SimPull Flange for Cable Reels SF-01

The SIMpull Flanges shaftless design; safely* allows one person to turn a wooden reel up to 34 in. and 2000 lbs. into a time saving; field-installable solution that removes the need to handle heavy jack stands.

Features

• Independently rotating flanges
• Allows inner wooden reel to rotate freely
• Shaftless design
• Compatible with wooden reels up to 34 in. and 2000 lbs.
• 52 lbs. tare weight per Flange
• Integral magnetic flange chocks
• Will fit through 36 in. wide doorways when used with a 32 in. or smaller reel
• Compatible with commercial & residental SIMpull building wire products; parallels/stacks; portable cord; MV; and metal-clad cable

Benefits

• Eliminates the need for jacks and arbor tube/conduit on compatible reel sizes
• Significantly easier and safer to move reels throughout a jobsite
• Allows reel to be placed right next to feed conduit/point
• Can be reinstalled onto multiple reels throughout the course of the job
• Designed to be installed in the field
• Stand included for easy storage and maneuverability

Specifications

• Diameter: 36 in.
• Tare Weight: 52 lbs. per SIMpull Flange
• Arbor Hole: 3 in.
• Minimum Reel Diameter: 22 in.
• Maximum Reel Diameter: 34 in.
• Minimum Reel Thickness: 5/8 in.
• Maximum load capacity: 2;000 lbs.
• Patent Pending
